StylAir's Product Lines
StylAir SHL model dryers are heaterless, twin-tower, regenerative desiccant dryers designed to remove water vapor from compressed air and gas streams to a pressure dewpoint of -40°F and lower.
Heaterless (pressure-swing adsorption) dryers are preferred for their simple, reliable design and low initial cost. A continuous flow of dry air or gas is provided to eliminate moisture and contaminants found in all air and gas systems.
StylAir SEH model dryers are external heat regenerated, twin-tower desiccant dryers designed to remove water vapor from compressed air and gas systems to a pressure dewpoint of -40°F and lower.
Heated Purge dryers are preferred in many applications for their simple, reliable design while maintaining the economy of operation of a heat regenerated dryer. StylAir SEH dryers typically use less than half the purge of a heaterless dryer. A continuous flow of dry air or gas is provided to eliminate moisture and contaminants found in all air and gas systems.
Stable and reliable polymer sensors have been used for relative humidity measurement for decades. Their drawback has been that they were not accurate in very low dewpoint ranges - until now...

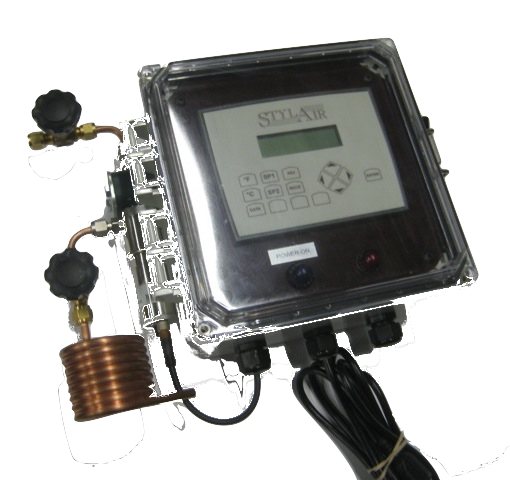

StylAir's Type 6N2 Dewpoint Sensor combines the proven characteristics of long-term stability and rugged design with a far wider operating range. The operating parameters have been expanded to cover applications where measurement of low moisture content is critical to process operations. This list includes (but is certainly not limited to) industrial and manufacturing processes found in food, metal, paper/wood, pharmaceutical, plastics, oil and gas, petrochem, and other markets.
Using a patented new technology, the filter modules separate both petroleum and synthetic lubricants/coolants from air compressor condensate. Factory and field tests show discharge from the SCP modules to have less than 10ppm lubricant/coolant. Typical applications for the SCP system are compressor aftercoolers, air dryers, air/oil demisters, coalescing filters, air system droplegs, and other applications that require separation of water from the contaminants.
