StylAir's SEH Series Heated Purge Desiccant Dryers

SEH Dryer

StylAir SEH model dryers are external heat regenerated, twin-tower desiccant dryers designed to remove water vapor from compressed air and gas streams to a pressure dewpoint of -40°F and lower.

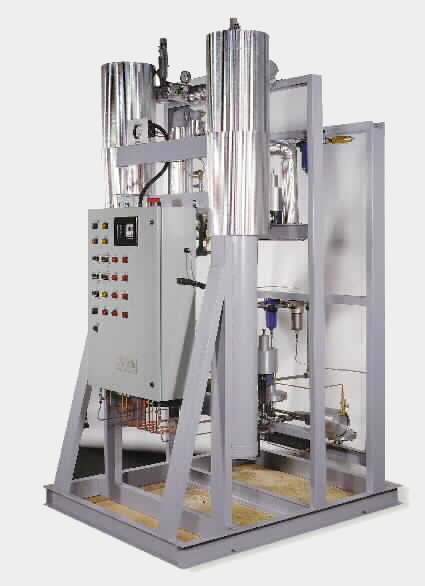

5000 PSIG Process Dryer

Heated Purge dryers are preferred in many applications for their simple, reliable design while maintaining the economy of operation of a heat regenerated dryer. StylAir SEH dryers typically use less than half the purge of a heaterless dryer. A continuous flow of dry air or gas is provided to eliminate moisture and contaminants found in all air and gas systems.

> Get more information...

> Compare the different models...

Standard Features

  • -40°F line pressure dewpoint
  • ASME Code desiccant vessels
  • NEMA 8 hour cycle, fully automatic operation
  • Fail safe operation: continuous flow on loss of power or control air
  • Non-lubricated valves
  • Tower pressure gauges on all models
  • Digital temperature control and indication for regeneration
  • Counter-current regeneration for best dewpoint
  • Integral cool down step to prevent dewpoint and temperature spikes at switchover
  • Gradual blowdown and repressurization for long desiccant life
  • ASME relief valve on outlet manifold
  • Full charge of desiccant
  • Heavy duty angle and channel support base
  • NEMA 4 electrical construction
  • SCR solid state heater control
  • Cycle Failure Alarm
  • 120V/1Ph/60Hz operation
  • On-Off switch with Power-On light and sequence lights
  • LED pilot lights

Optional Features

  • -70°F to -100°F and lower line pressure dewpoint
  • Purge Rate Flowmeter - included on larger models
  • Dewpoint Demand Systems
  • NEMA 4X, 7 electrics
  • Entrainment Separators
  • Coalescing Prefilters
  • Afterfilters
  • Mounted filters, manual bypasses
  • Dewpoint monitors and alarms
  • Color change dewpoint indicator
  • Steam heat regeneration
  • Special designs available for flows to 30,000 SCFM and pressures to over 5000 PSIG
  • Construction for corrosive environments, hazardous locations, off-shore installations
  • Optional voltages
