StylAir's SEH Series - More Info

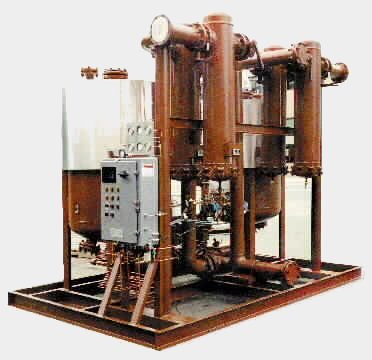

The StylAir regenerative desiccant dryer is a fully automatic unit designed to dry compressed air or gas to meet or exceed the customer's requirements. The dryer consists of dual drying chambers which are alternately cycled through drying and regeneration cycles. One chamber is drying air at all times.

The wet, compressed process air flows through one drying tower where water vapor is adsorbed into the desiccant - an inert, hygroscopic material with an enormous surface to mass ratio. The off-stream drying tower is regenerated by taking a small amount of the dried process air (purge) and passing it through its bed at low (atmospheric) pressure. The moisture trapped in the desiccant is released and is carried off by the purge flow and exhausted to atmosphere. A cooling step in the cycle ensures that there are no temperature or dewpoint spikes at switchover.

Back to SEH Overview...

Conservative Tower Sizing - Designed for Optimum Performance and Long Desiccant Life

  • Low upflow velocities – < 60 fpm
  • Long contact times – 5 sec. or more
  • Controlled blowdown and repressurization

Rugged, Reliable Industrial Controls

  • Low watt density heathers with Incoloy elements
  • Integral flow switch for heater protection and low purge flow indication
  • UL components from controllers to terminal boards to provide that extra measure of safety
  • High style NEMA 4 enclosures
  • Microprocessor/PLC based controls provide real diagnostic info

Drying towers, heater housing and hot regeneration piping are insulated for energy savings and personnel protection.

SS Desiccant Support/Flow Distributors

  • Practically indestructible wedge-wire design prevents collapse or tearing
  • Cleanable and reusable

Proven high reliability valving

  • Designed for air dryer service
  • Non-lubricated, high cycle design
  • Easy maintenance
  • Only dry, filtered pilot air is used for actuated valves

Separate desiccant fill and drain ports on all models

Standard high temp (800°F) coating provides a tough, corrosion and weather resistant finish.
